SLP-70
MANUAL Non-Cathode Follower and Internal PS
w/ Bound for Sound Review
*All graphics on this page link to full-size, high resolution, 1000 pixel versions.
Please click on the graphics for viewing. ALT: View SLP-70 Manual on ONE PAGE

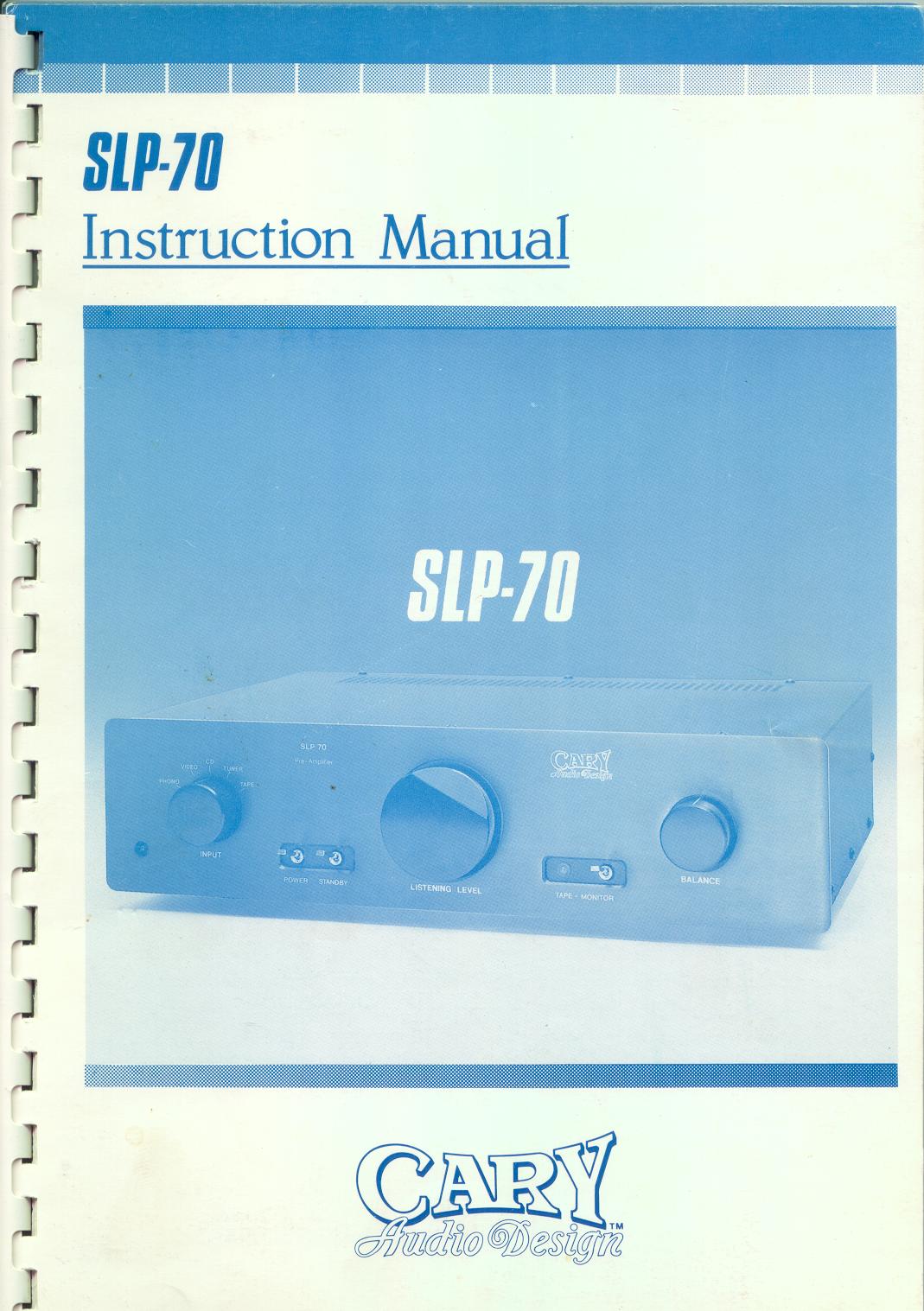

title

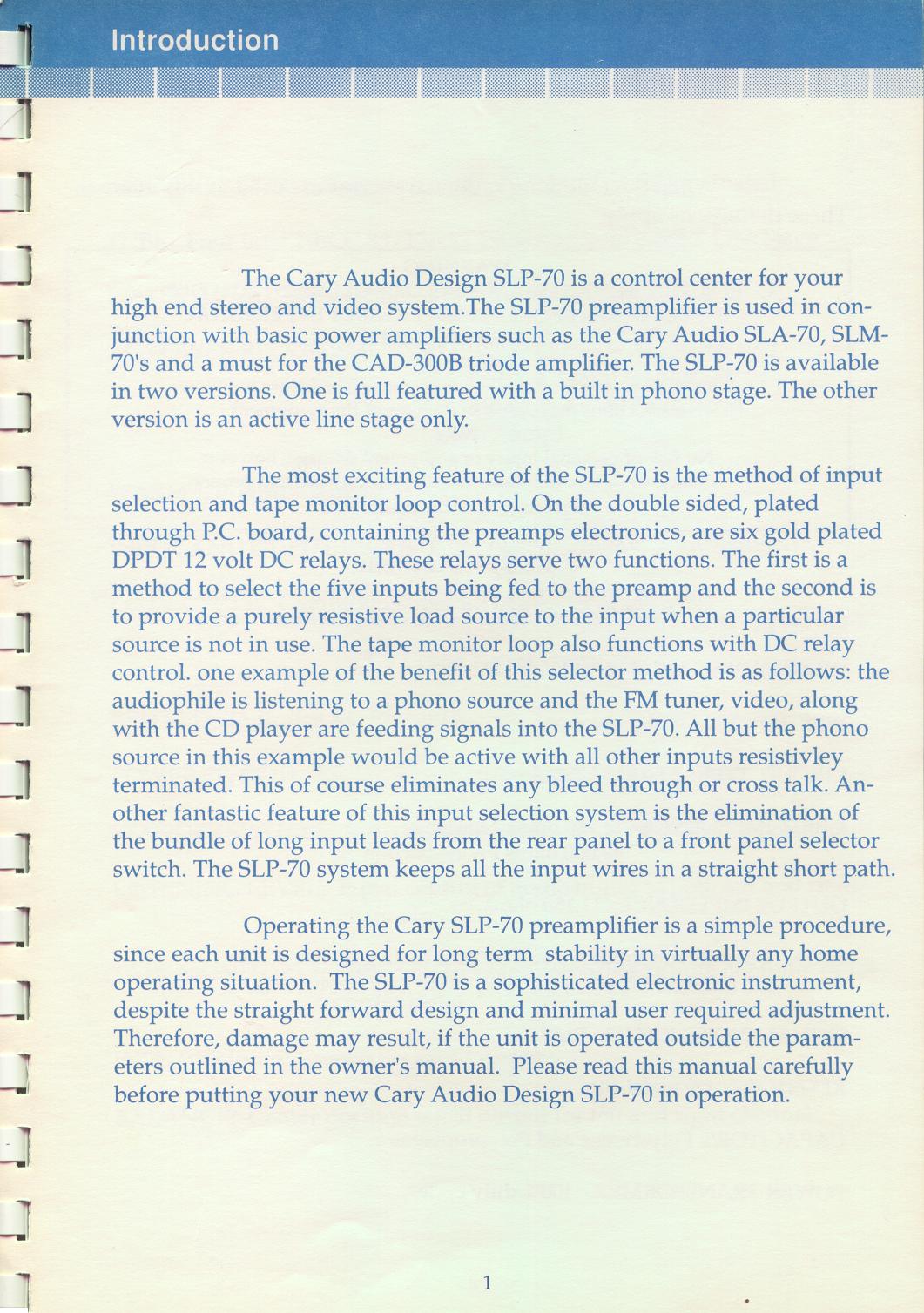

page 1

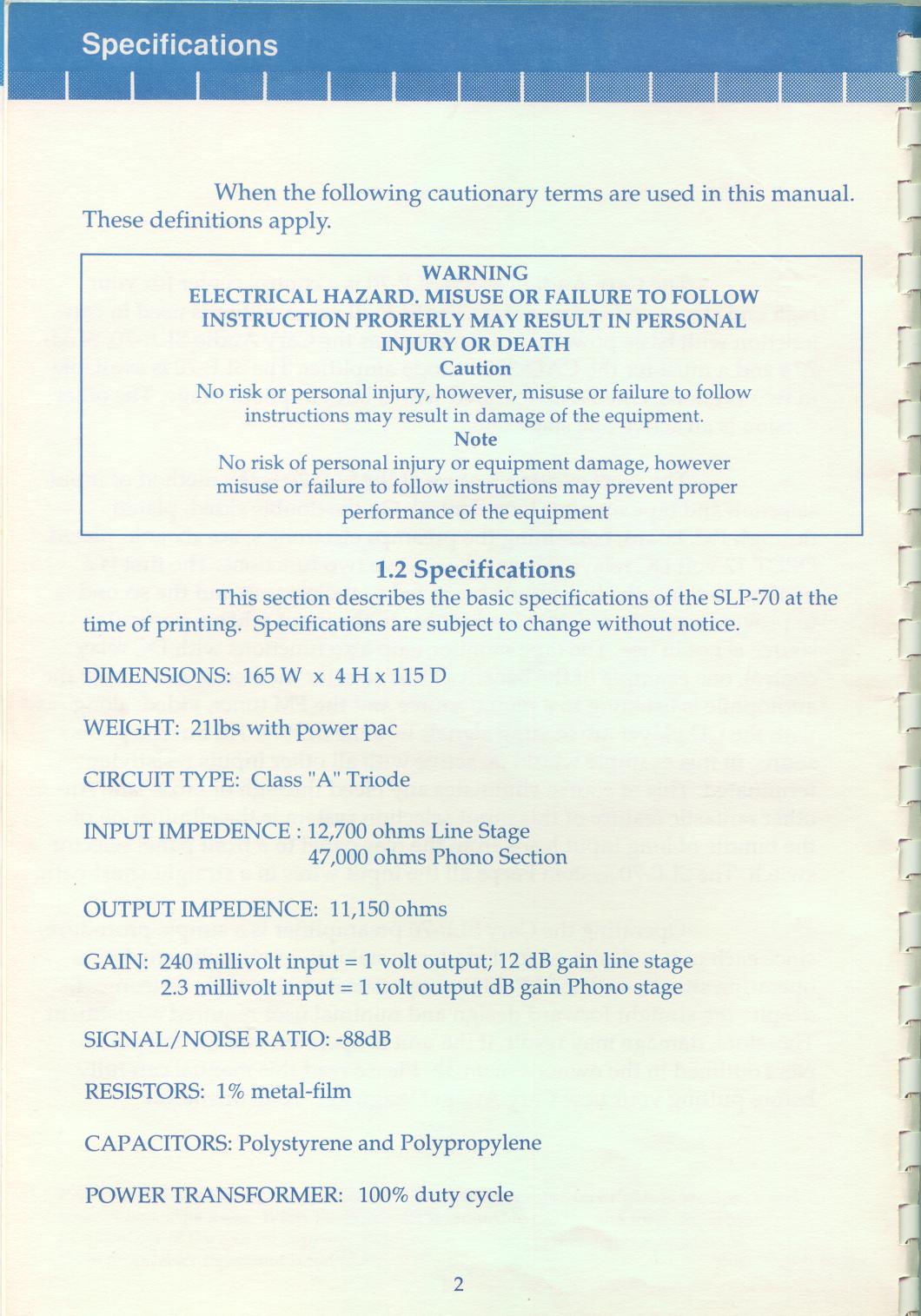

page 2

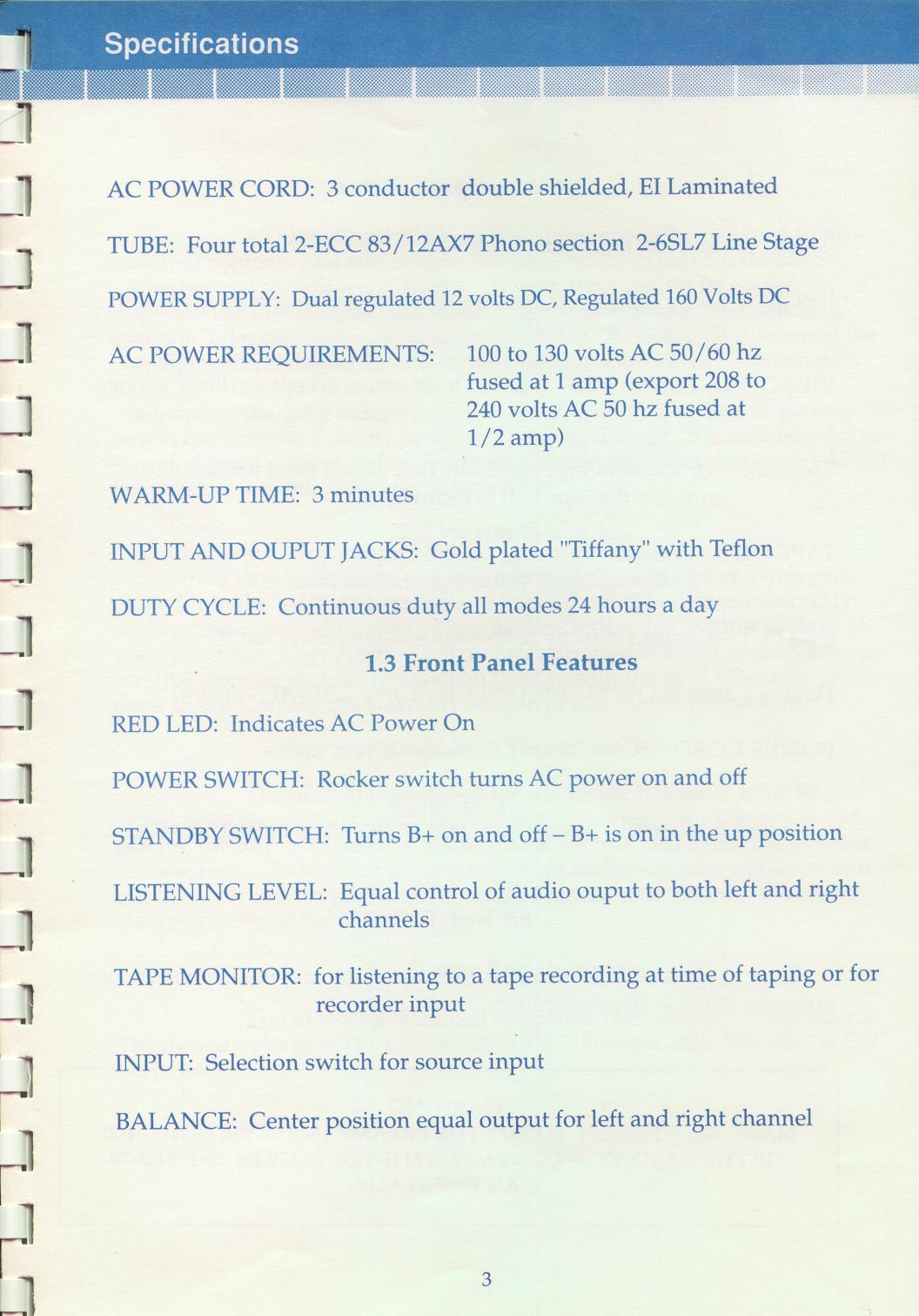

page 3

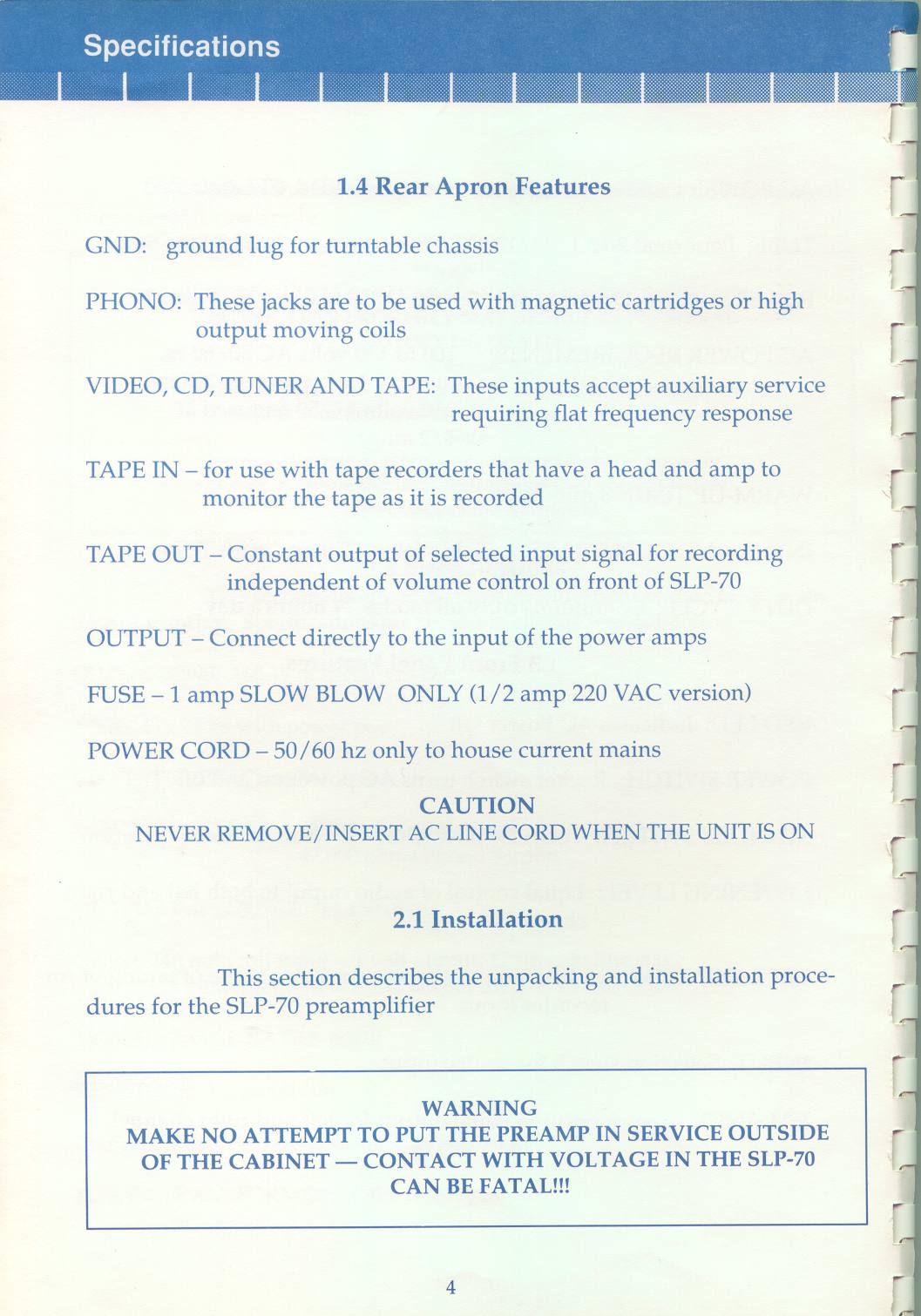

page 4

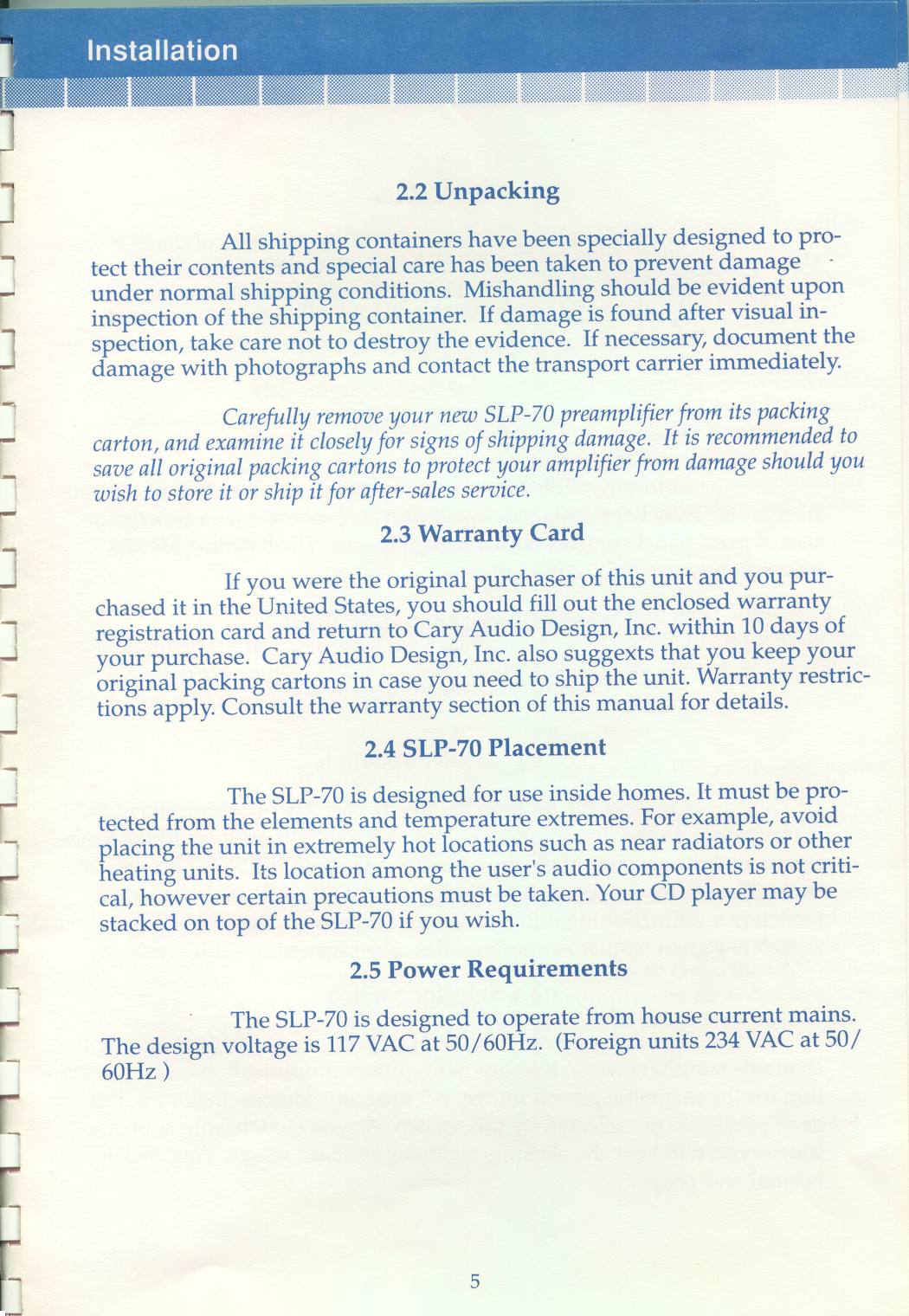

page 5

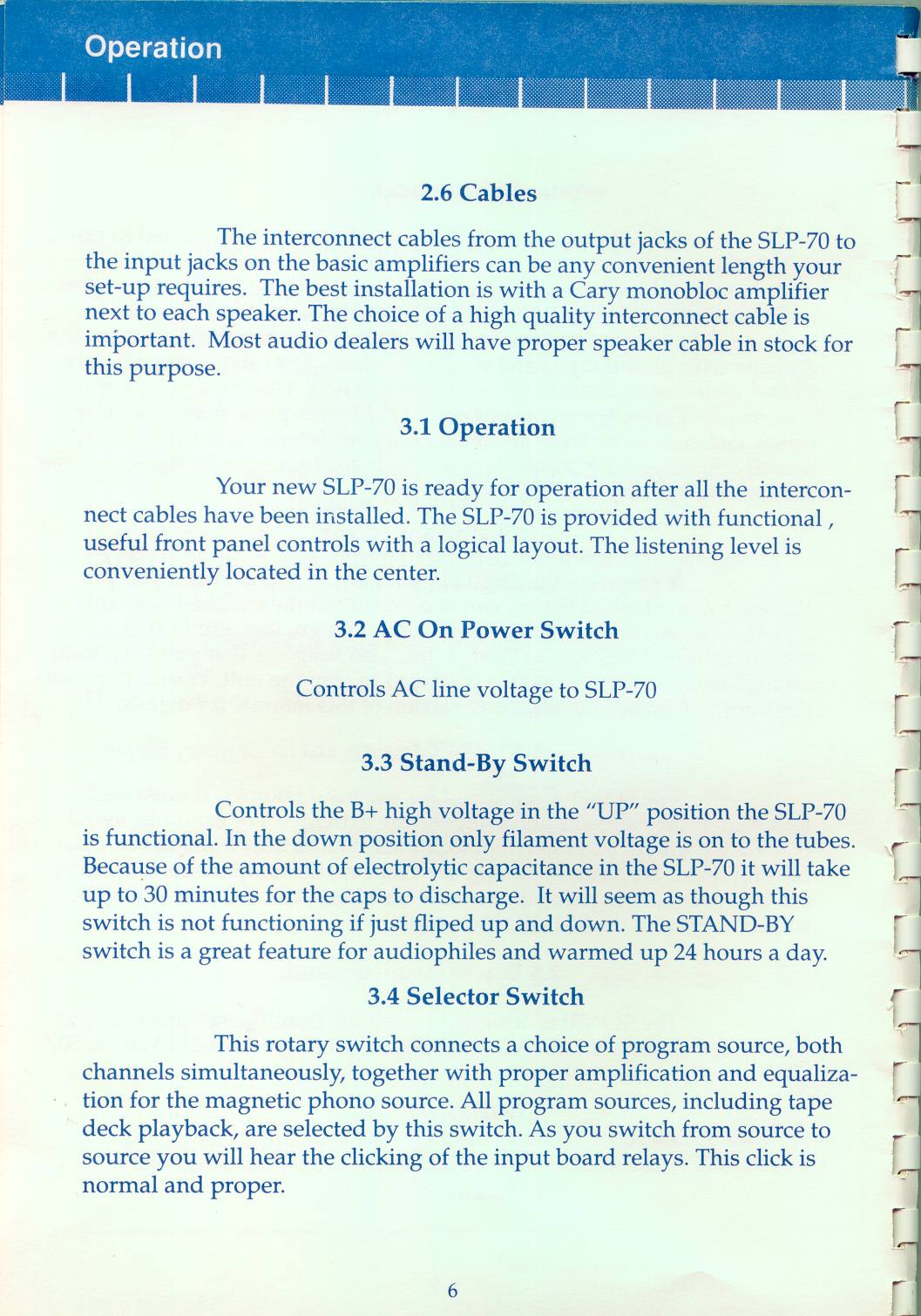

page 6

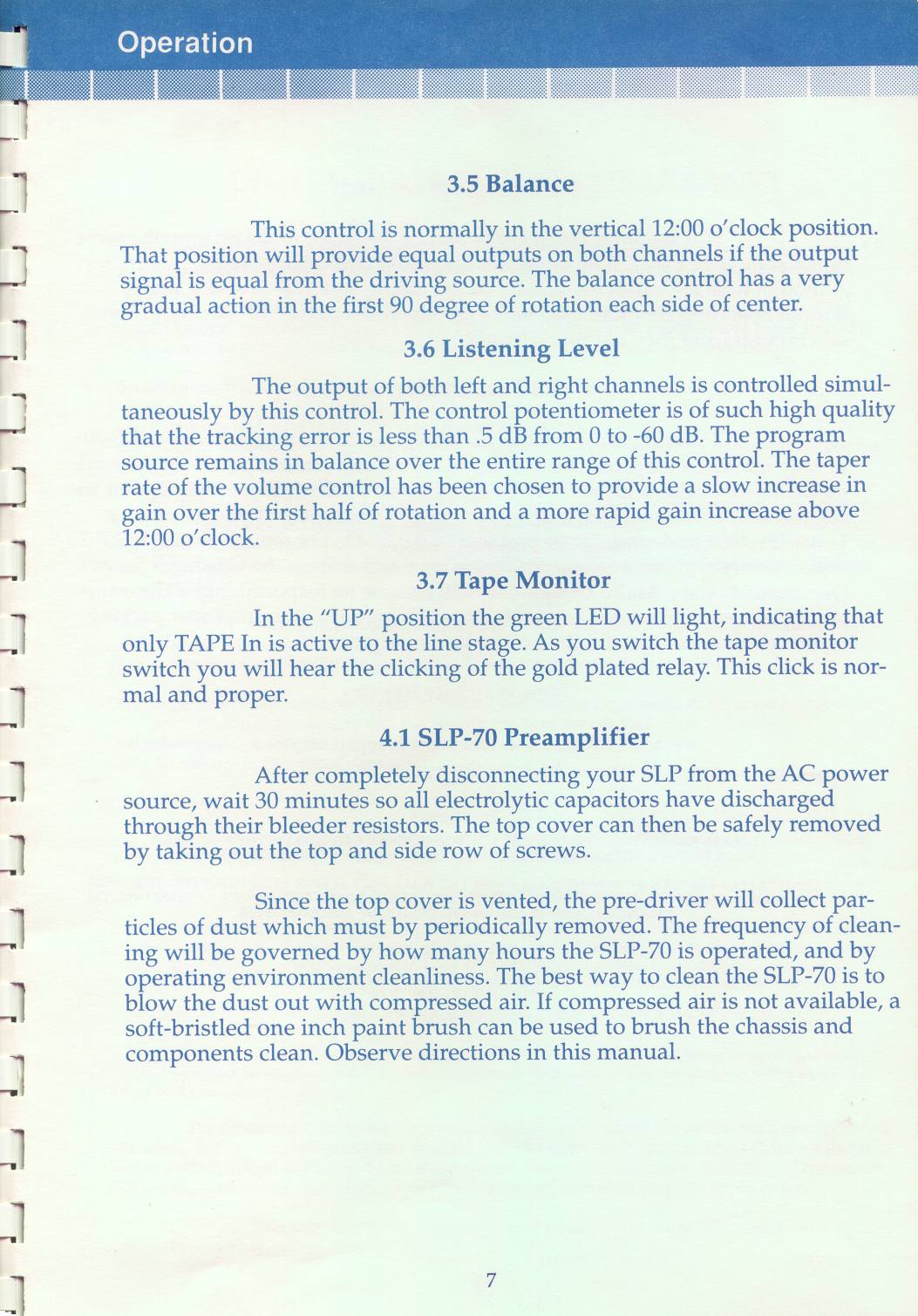

page 7

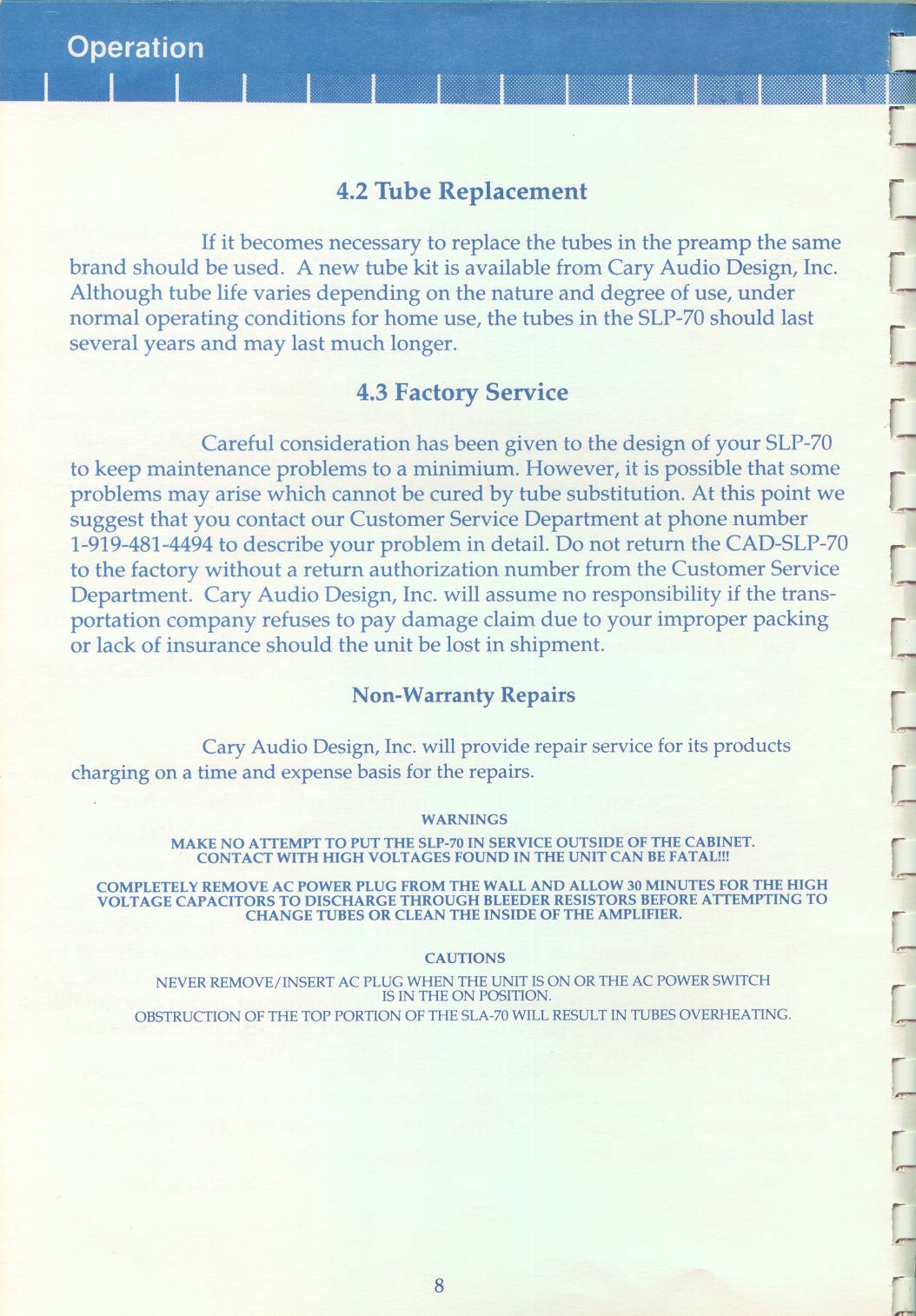

page 8

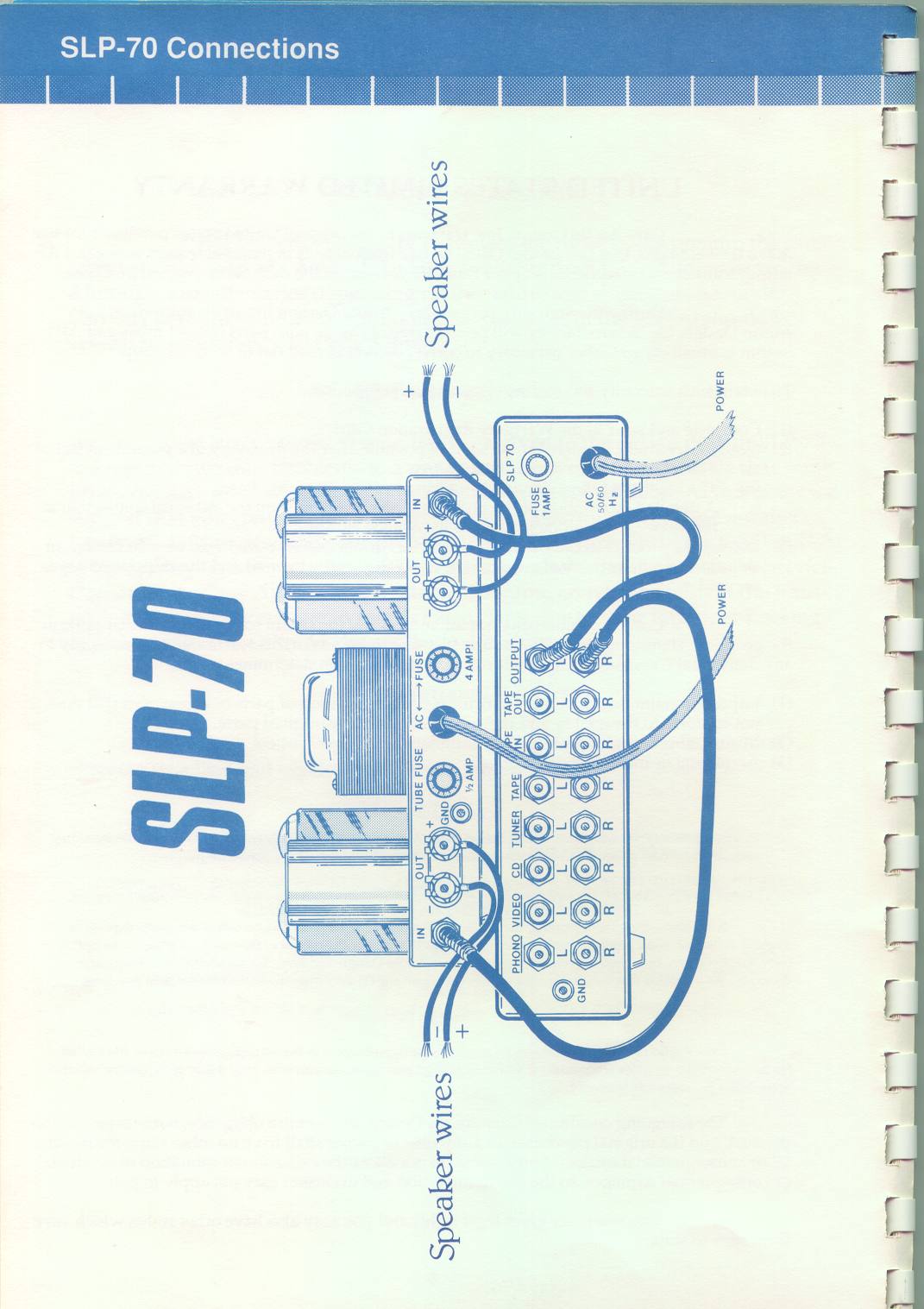

page 9
Sensible Sound Review
. . CIRCUIT TYPE: Class A - All Triode - Zero Feedback TUBE COMPLEMENT: 2-12AX7 Phono | 2-6SL7 Line Stage | 2-6SN7 Cathode Follower GAIN: 1.30 millivolt input=1 volt output - 53dB Gain INPUT IMPEDANCE: 47,000 Ohms OUTPUT IMPEDANCE: 800 ohms SIGNATURE TO NOISE RATIO: -88 dB INPUT AND OUTPUT JACKS: Gold Plated Tiffany OFC with Teflon RESISTORS: 1% Metal Film CAPACITORS: Polystyrene and Polypropylene POWER SUPPLY: Dual Regulated 12volts DC/Regulated 160 volts DC DUTY CYCLE: 200% duty Cycle - Continuous duty all modes 24 hours a day WARM-UP TIME: 3 Minutes DIMENSIONS: 4" x 16.5" x 11.5" WEIGHT: 21 lb. FINISH: Black Anodized Aluminum YEAR BUILT: 1993 MANUAL: See above PRICE NEW: $1350
The Cary SLP-70 with Cathode Follower and external Power Supply
- click above for home page -

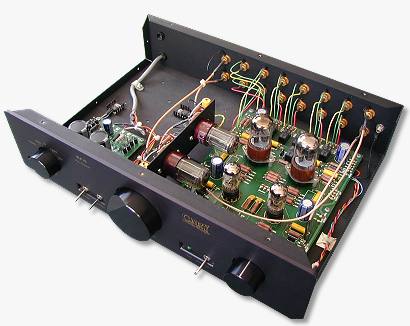

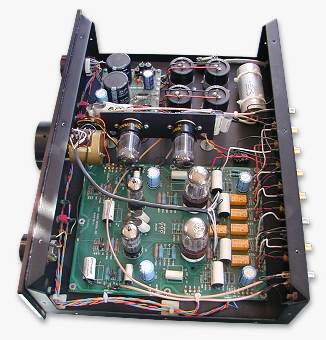

Extensively modified Cary SLP-70 with Cathode Follower
TKD Attenuator, PS Mods, MIT Mods, Kimber Silver, Balance Bypass
- click for full view -

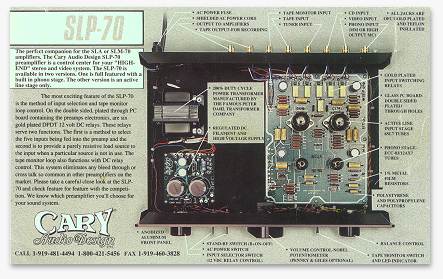

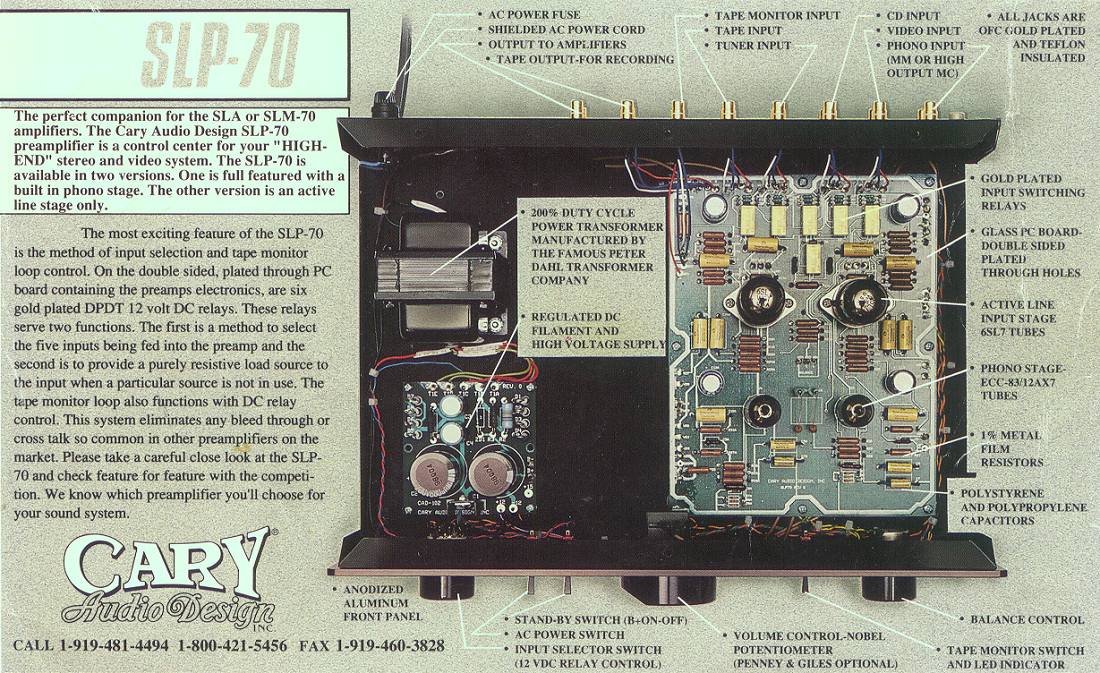

Orginal Cary SLP-70 Brochure with internal Dalh Transformer and no Cathode Follower
- click for full view -
